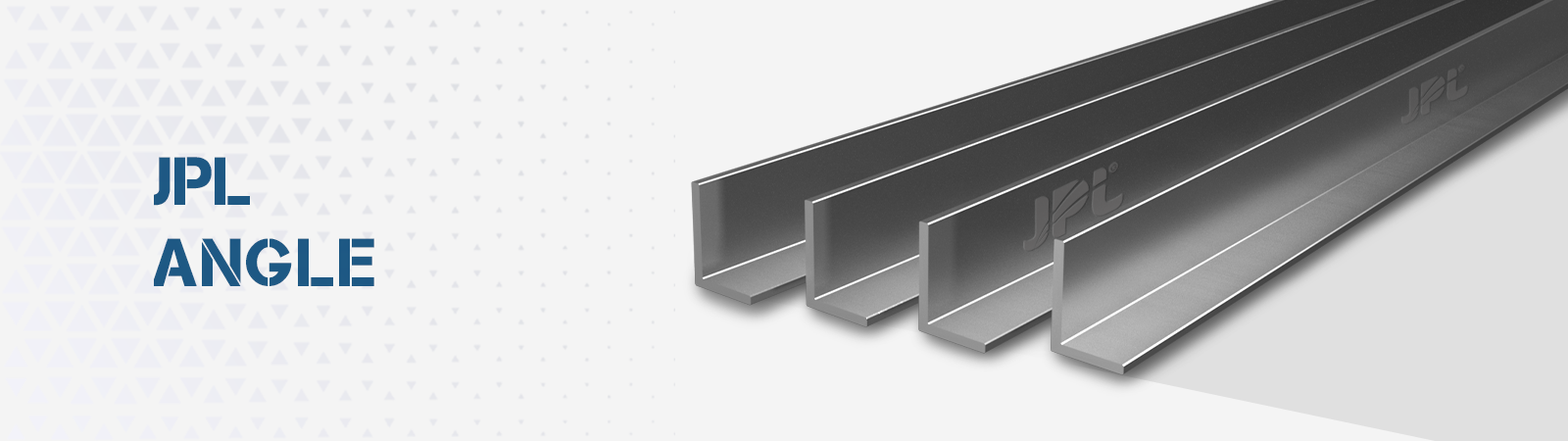

MS Angle is an L-shaped cross-section used in the construction of structures. The most commonly used MS steel angles are in Fabrication of Electrical & Telecom towers and also fencing of various.
| Section Description |
Dimension (A)x (B) x (t)(mm) |
Section Weight(w) (kg/Mtrs) |
Section Area(a) (cm2) |
Cxx Cyy (cm) |
Moment of Inertia (cm2) | Moment of Section (cm2) | Moduli of Zxx = Zyy(cm) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ixx = Iyy | Iuu | Ivv | rxx = ryy | ruu | rvv | ||||||||||||||
| A40x40 | 40x40x5 | 3.0 | 3.78 | 1.16 | 5.4 | 8.6 | 2.2 | 1.2 | 1.51 | 0.77 | 1.90 | ||||||||
| 40x40x6 | 3.5 | 4.47 | 1.20 | 6.3 | 10.0 | 2.6 | 1.19 | 1.50 | 0.77 | 2.30 | |||||||||
| A45x45 | 45x45x4 | 2.7 | 3.47 | 1.25 | 6.5 | 10.4 | 2.6 | 1.37 | 1.73 | 0.87 | 2.00 | ||||||||
| 45x45x5 | 3.4 | 4.28 | 1.29 | 7.9 | 12.6 | 3.2 | 1.36 | 1.72 | 0.87 | 2.50 | |||||||||
| A50x50 | 50x50x5 | 3.8 | 4..79 | 1.41 | 11.0 | 17.6 | 4.5 | 1.53 | 1.93 | 0.97 | 2.50 | ||||||||
| 50x50x6 | 4.5 | 5.68 | 1.45 | 12.9 | 20.6 | 5.3 | 1.68 | 2.12 | 1.06 | 3.00 | |||||||||
| A55x55 | 55x55x4 | 3.3 | 4.26 | 1.49 | 12.3 | 21.4 | 4.7 | 1.68 | 2.12 | 1.06 | 3.00 | ||||||||
| 50x50x5 | 4.1 | 5.27 | 1.53 | 14.7 | 23.5 | 5.9 | 1.67 | 2.11 | 1.06 | 3.70 | |||||||||
| A60x60 | 60x60x4 | 3.7 | 4.71 | 1.60 | 15.8 | 25.0 | 6.6 | 1.83 | 2.30 | 1.18 | 3.58 | ||||||||
| 60x60x5 | 4.5 | 5.75 | 1.65 | 19.2 | 30.6 | 7.7 | 1.82 | 2.31 | 1.15 | 5.20 | |||||||||
| 60x60x6 | 5.4 | 6.84 | 1.69 | 22.6 | 36.0 | 9.1 | 1.82 | 2.29 | 1.15 | 6.80 | |||||||||
| A65x65 | 65x65x5 | 4.9 | 6.25 | 1.77 | 24.7 | 39.4 | 9.9 | 1.99 | 2.51 | 1.26 | 5.2 | ||||||||
| 65x65x6 | 5.8 | 7.44 | 1.81 | 29.1 | 46.5 | 11.7 | 1.98 | 2.50 | 1.26 | 6.2 | |||||||||
| 65x65x8 | 7.7 | 9.76 | 1.89 | 37.4 | 59.5 | 15.3 | 1.96 | 2.47 | 1.25 | 8.1 | |||||||||
| 65x65x10 | 9.4 | 11.0 | 1.85 | 34.8 | 54.9 | 14.6 | 1.78 | 2.23 | 1.15 | 8.4 | |||||||||
| A70x70 | 70x70x5 | 5.3 | 6.77 | 1.89 | 31.1 | 49.8 | 12.5 | 2.15 | 2.71 | 1.36 | 6.1 | ||||||||
| 70x70x6 | 6.3 | 8.06 | 1.94 | 36.8 | 58.8 | 14.8 | 2.14 | 2.70 | 1.36 | 6.1 | |||||||||
| A75x75 | 75x75x5 | 5.7 | 7.27 | 2.02 | 38.7 | 61.9 | 15.5 | 2.31 | 2.92 | 1.46 | 7.1 | ||||||||
| 75x75x6 | 6.8 | 8.66 | 2.06 | 45.7 | 73.1 | 18.4 | 2.30 | 2.91 | 1.46 | 8.4 | |||||||||
| 75x75x8 | 8.9 | 11.4 | 2.14 | 59.0 | 94.1 | 24.0 | 2.28 | 2.88 | 1.45 | 11.0 | |||||||||
| 75x75x10 | 11.0 | 14.0 | 2.22 | 71.4 | 113 | 29.4 | 2.26 | 2.84 | 1.45 | 13.5 | |||||||||
| A80x80 | 80x80x6 | 7.3 | 9.29 | 2.18 | 56.0 | 89.6 | 22.5 | 2.46 | 3.11 | 1.56 | 9.6 | ||||||||
| A90x90 | 90x90x6 | 8.2 | 10.5 | 2.42 | 80.1 | 128 | 32.0 | 2.77 | 3.50 | 1.75 | 12.2 | ||||||||
| 90x90x8 | 10.8 | 13.8 | 2.51 | 104 | 166 | 42.0 | 2.75 | 3.47 | 1.75 | 16.0 | |||||||||
| A100x100 | 100x100x6 | 9.2 | 11.7 | 2.67 | 111 | 178 | 44.5 | 3.09 | 3.91 | 1.95 | 15.2 | ||||||||
| 100x100x8 | 12.1 | 15.4 | 2.76 | 145 | 232 | 57.4 | 3.07 | 3.88 | 1.95 | 20.0 | |||||||||
| 100x100x10 | 14.9 | 19.0 | 2.84 | 177 | 282 | 71.8 | 3.05 | 3.85 | 1.94 | 24.7 | |||||||||
| A110x110 | 110x110x8 | 13.4 | 17.1 | 3.00 | 197 | 313 | 81.0 | 3.40 | 4.28 | 2.18 | 34.9 | ||||||||
| 110x110x10 | 16.5 | 21.1 | 3.09 | 240 | 381 | 98.9 | 3.37 | 4.25 | 2.16 | 24.6 | |||||||||
| 110x110x12 | 19.7 | 25.1 | 3.17 | 281 | 446 | 116 | 3.35 | 4.25 | 2.15 | 30.4 | |||||||||
| A120x120 | 120x120x8 | 14.7 | 18.7 | 2.23 | 255 | 405 | 105 | 3.69 | 4.65 | 2.37 | 29.1 | ||||||||
| 120x120x10 | 18.2 | 23.2 | 3.31 | 313 | 497 | 129 | 3.67 | 4.63 | 2.36 | 36.0 | |||||||||
| 120x120x12 | 21.6 | 27.5 | 3.40 | 368 | 584 | 151 | 3.65 | 4.60 | 2.35 | 42.7 | |||||||||
| A130x130 | 130x130x10 | 19.7 | 25.1 | 3.59 | 405 | 540 | 166 | 4.02 | 5.07 | 2.57 | 43.1 | ||||||||
| 130x130x12 | 23.5 | 29.9 | 3.67 | 476 | 757 | 196 | 3.99 | 5.03 | 2.56 | 51.0 | |||||||||
| 130x130x16 | 30.7 | 39.2 | 3.82 | 609 | 966 | 250 | 3.94 | 4.97 | 2.54 | 66.3 | |||||||||
| A150x150 | 150x150x12 | 27.3 | 34.8 | 4.16 | 746 | 1190 | 306 | 4.63 | 5.84 | 2.97 | 68.8 | ||||||||
| 150x150x16 | 35.8 | 45.6 | 4.31 | 959 | 1520 | 395 | 4.58 | 5.77 | 2.94 | 89.7 | |||||||||
| 150x150x20 | 44.1 | 56.2 | 4.46 | 1160 | 1860 | 481 | 4.53 | 5.71 | 2.93 | 110 | |||||||||
| A200x200 | 200x200x12 | 36.9 | 46.9 | 5.39 | 1830 | 2910 | 747 | 6.24 | 7.87 | 3.99 | 125 | ||||||||
| 200x200x16 | 48.5 | 61.8 | 5.56 | 2370 | 3760 | 768 | 6.19 | 7.80 | 3.96 | 164 | |||||||||
| 200x200x20 | 60.0 | 76.4 | 5.71 | 2880 | 4570 | 1180 | 6.14 | 7.73 | 3.93 | 201 | |||||||||
| 200x200x25 | 73.9 | 94.1 | 5.90 | 3470 | 5500 | 1440 | 6.07 | 7.61 | 3.91 | 246 | |||||||||
