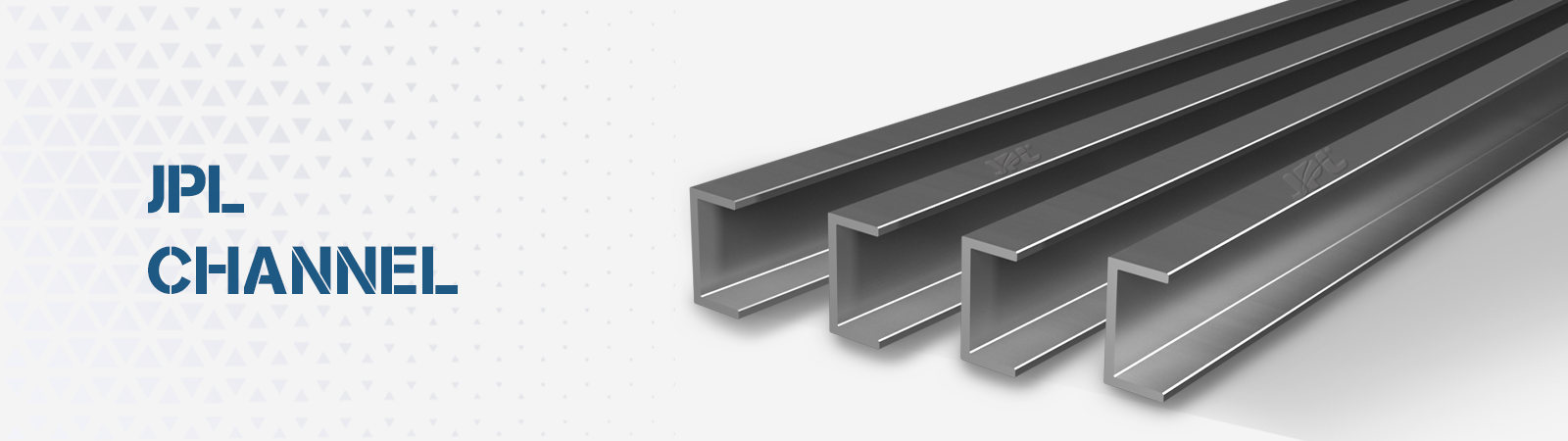

We offer our patrons a comprehensive range of MS Channels manufactured from the finest quality raw-material. Our range of MS Channels used in Various Fabrications of PEB.

Dimension Chart of CHANNELS Detials

Section
Description		 Dimension (h) x (b) x (t w) (mm) Section
Weight(w)
(kg/Mtrs)		 Section
Area(a)
(cm2)		 Center of Gravity (cyy) cm Moment of Inertia (cm2) Moment of Section (cm2) Moment of Section (cm 2 )
          Ixx Iyy Zxx Zyy rxx ryy
MC 75 75x40x4.8 7.14 9.10 1.32 78.5 12.9 20.9 4.81 2.94 1.19
MC 100 100x50x5.0 9.56 12.2 1.54 192 26.7 33.5 7.71 3.97 1.48
MC 125 125x65x5.3 13.1 16.7 1.95 425 61.1 68.1 13.4 5.05 1.91
MC 150 150x75x5.7 16.8 21.3 2.20 788 103 105 19.5 6.08 2.20
MC 200 200x75x6.2 22.3 28.5 2.20 1830 141 181 26.4 8.02 2.22
MC 250 25080x7.2 30.6 39.0 2.30 3880 211 307 38.5 9.92 2.37
MC 300 300x90x7.8 36.3 46.3 2.35 6420 313 428 47.1 11.80 2.60
